ROTEX® ZS-DKM-H
Product characteristics
• Standard spacers up to 250 mm shaft distance dimension ex stock®
• Assembly/disassembly through 4 screws only
• Compensates for high shaft displacements due to double-cardanic
• Remains torsionally symmetric in case of shaft displacements
• Reduced vibration and noise
• Low restoring forces - Increase of the total lifetime
• of all adjacent components (bearings, seals etc.)
• Finish bore according to ISO fit H7,
• feather keyway according to DIN 6885 sheet 1 - JS9

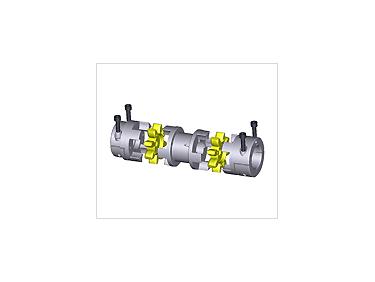

Click on image to enlarge

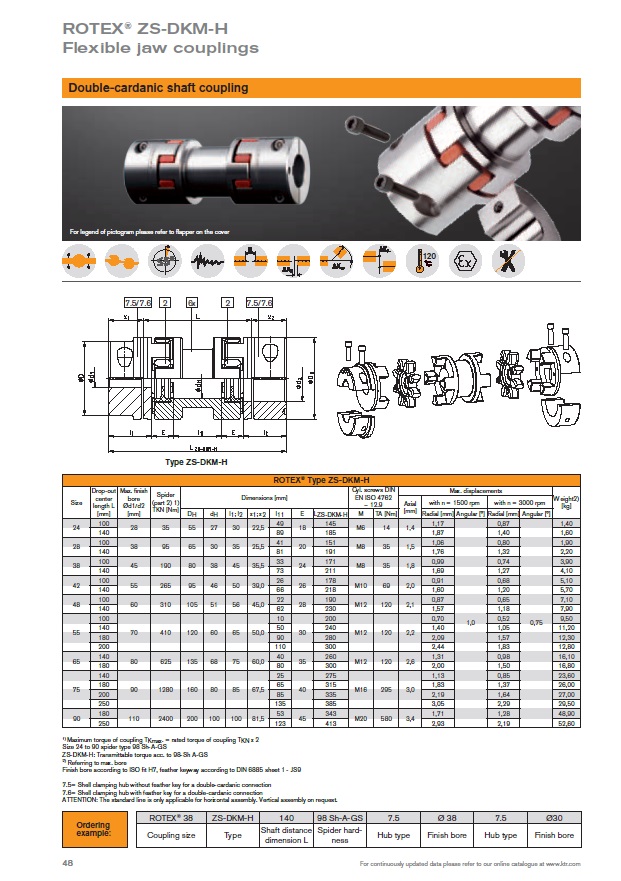

Dimensions
