ROTEX® A-H
Product characteristics

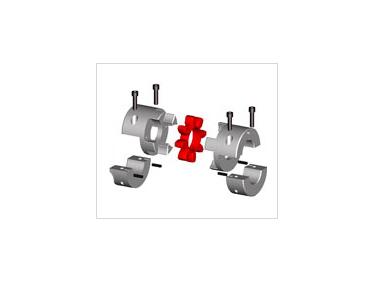

• Assembly/disassembly by means of 4 screws only
• Exchange of spider with no need to shift the driving
• and driven side (motor and pump)
• Positive-locking and frictionally engaged hub combinations
• to be assembled radially
• (dimension E1 of design AFN =dimension E1 of A-H)
• Finish bore according to ISO tolerance H7,
• feather key according to DIN 6885 sheet 1 - JS9

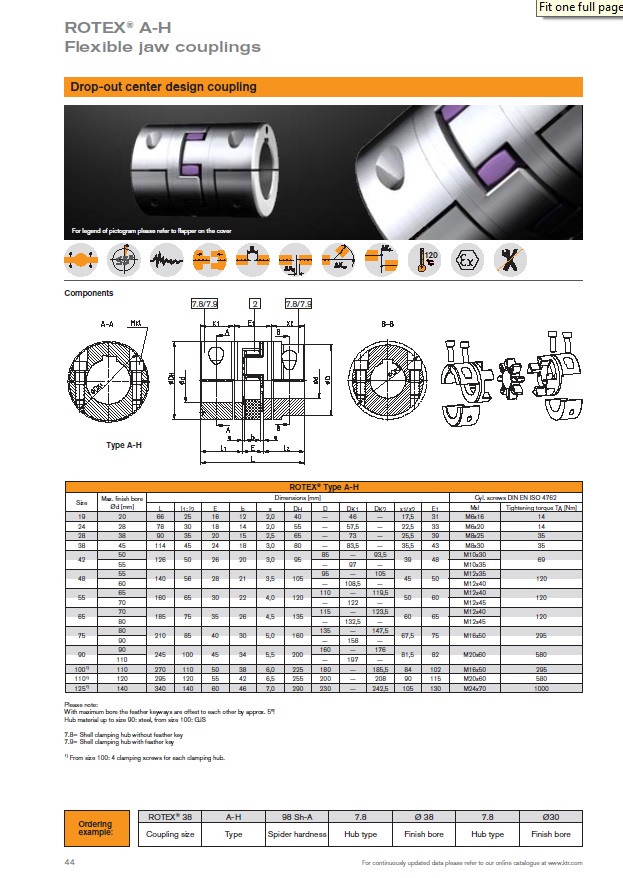

Click on image to enlarge
Dimensions
