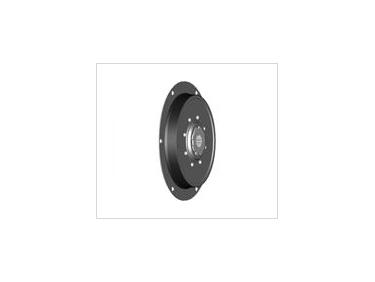

MONOLASTIC®
Product characteristics
• Single-piece, flexible flange coupling
• For the drive of diesel engine/hydraulic pump up to 250 kW
• Available in different shore hardnesses
• Axial plug-in in connection with pump spline shaft
• Available for SAE and DIN pump spline shafts
• Available with 3-hole and SAE mounting
Click on image to enlarge
Additional Information
The Monolastic® coupling will compensate for radial and angular displacements with extremely low restoring
forces via the elastomer part. That is why it is particulary suitable for the drive of hydraulic pumps in individual
or multiple arrangements.
The assembly and centring of the coupling to the engine flywheel is achieved directly via the flange of the coupling.

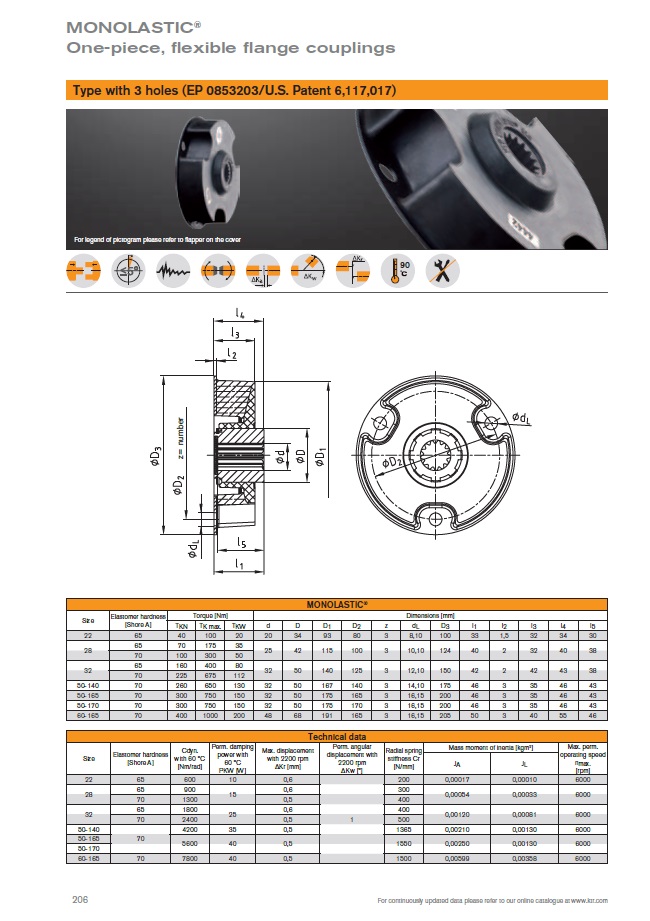

Dimensions

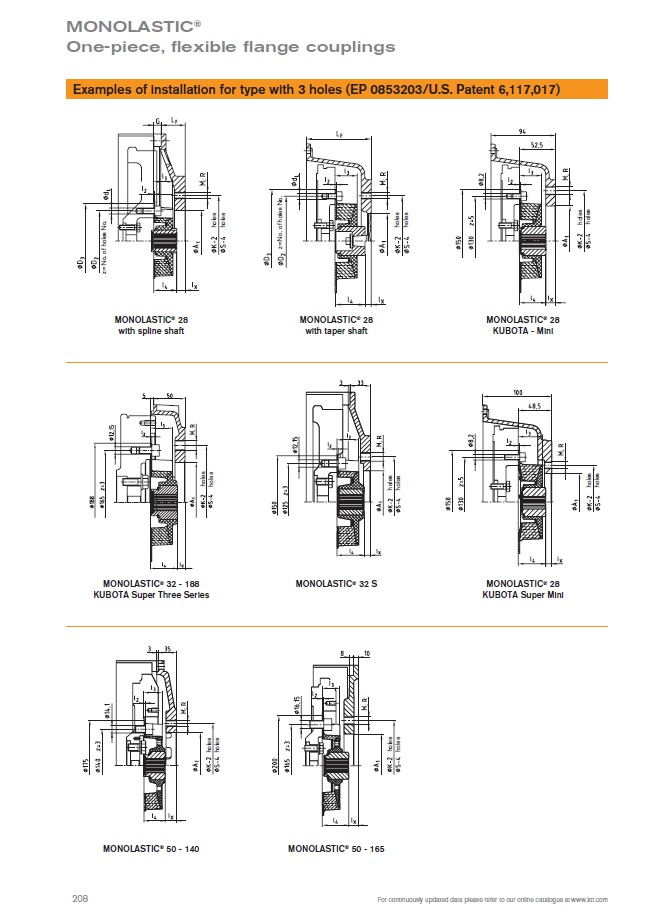

Operation/Arrangement
