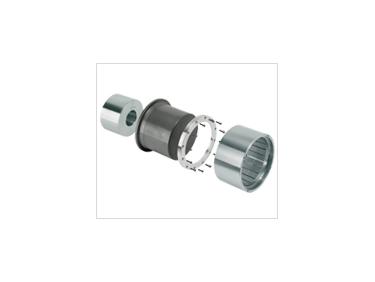

MINEX®-S with PEEK shroud
Product characteristics
• No losses of eddy current
• No generation of heat in the coupling caused by the containment shroud
• Low susceptibility to fracture, low weight, easy handling
Optimal solution with low demands on temperature and pressure resistance (up to 16 bar and +130° C)
• Torque range from 10 to 390 Nm
• Internal cooling measures are not required
• The selection torque may be reduced by 10 to 15 %
• Specifically suitable for dry-running drives
Click on image to enlarge
Additional Information
The main component of the MINEX®-S is the containment shroud that is fixed to the driven-sided power unit and separates internal and external rotor from each other. It ensures a low-vibration torque transmission working without mechanical connection and guarantees a completely leak-proof separation of product and atmosphere. The sealing is achieved with a flat seal or an o-ring, thus eliminating the need to dynamically load the sealing elements.
The material PEEK does not generate any eddy current losses so that the selection torque of the coupling can be reduced by 10 to 15 %. Since a generation of heat in the coupling caused by the containment shroud material does not have to be expected, PEEK is excellently suitable for dry-running applications such as vacuum pumps, compressors or fan drives as well as agitators, PU plants, etc.
Depending on the size, the MINEX®-S types with containment shroud made of PEEK can be used up to 16 bar and 130 °C.

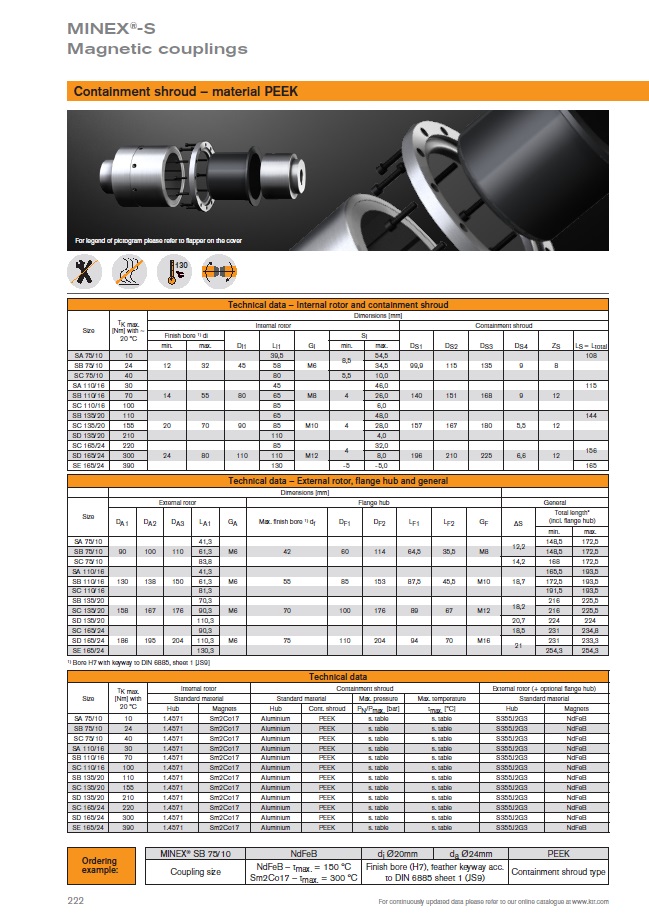

Dimensions
