Product characteristics



• Sealed shafts for difficult ambient conditions

• Big pad surface resulting in small surface pressure, low wear

of pads and low temperature

• Low wear of pistons due to arrangement of the pistons in

guide rings

• High power density

• Brake pads available from various materials

• Dirt is prevented by strippers in the shaft guidance



Description

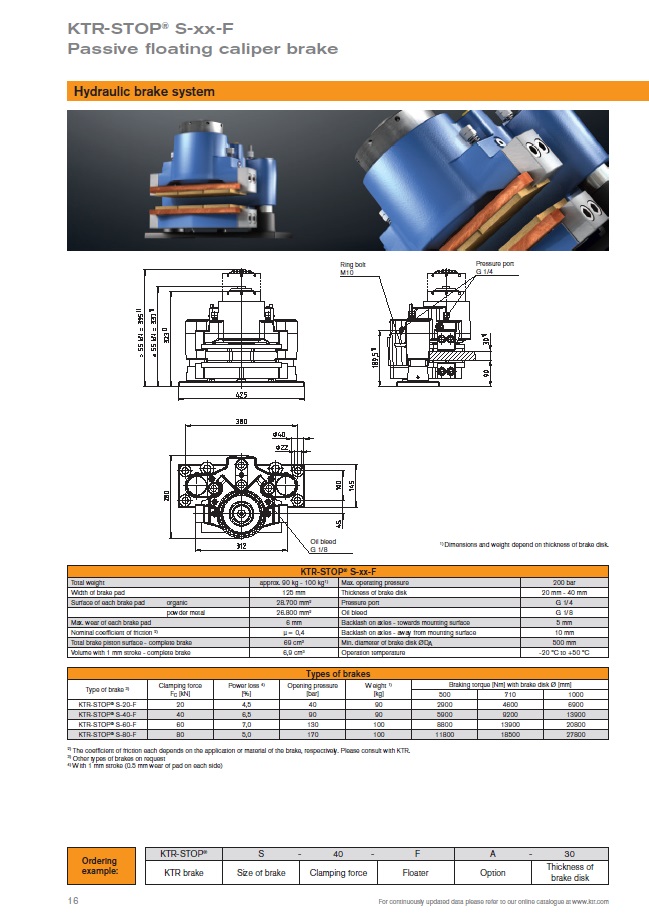

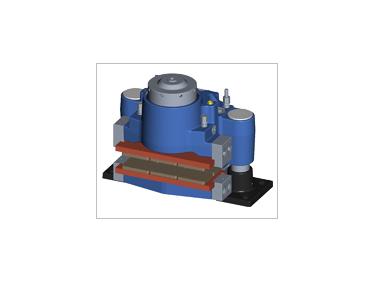

The brake caliper S-xx-F is designed as a floating caliper brake providing for the benefit of being mainly free from axial forces as far as the brake disk is concerned. Even in case of misadjustment or an error with the installation a damage on the drive train is prevented in this way. The use of guide rings and the option to wear off the pads fully allows to permit long maintenance intervals and optimize the operating expenses.

This brake is a typical service brake which is used with low torques. All features of this brake are aiming at operating reliably even under extreme environmental conditions while generating low operating expenses subject to its design.
