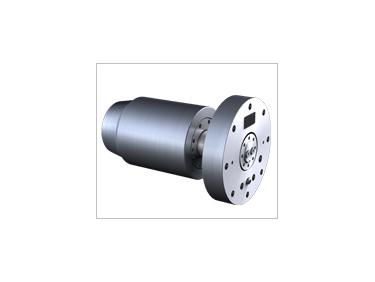

KTR-STOP® RL M
Product characteristics
• Lateral forces of up to 4,000 kN
• Locks the rotor on the shaft side with low speed
• Hydraulic and mechanical version available in two sizes
Description
Rotorlock is a locking system by means of which the rotor of a wind power plant can be locked mechanically for service after stopping.
Rotorlock systems are available from KTR both in a hydraulic design and with manual operation as a standard in various sizes up to a diameter of 300 mm.
Click on image to enlarge

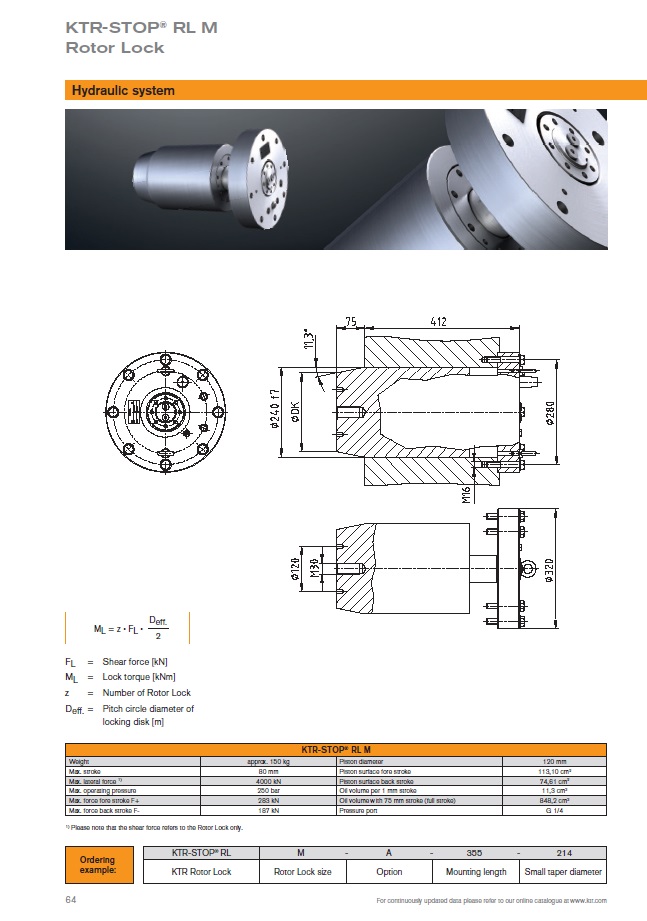

Dimensions
