EVOLASTIC® DFH
EVOLASTIC® DFH highly flexible spacer coupling
Highly flexible flange coupling with intermediate shaft in customer-specific shaft distances
Type DFH is a highly flexible intermediate shaft coupling for mounting on I. C.-engines and electric motors. This type combines the standard connection flange according to SAE-J620 with an intermediate shaft for bridging large shaft distances.
The intermediate shaft is available in customised lengths.
The connection flange is available in six SAE flange sizes.
Subject to its torsionally soft property it serves for insulating vibrations and acoustics in the drive train.
In addition to transmitting the torque the coupling compensates for axial, radial and angular misalignment while absorbing overload flexibly.
Type DFH can be screwed in axially and is available in ten sizes.
The type is available in two materials - NR and on request EPDM.
The maximum operating temperature of the element is 90 °C (NR) resp. 110 °C (EPDM).
The flange hub is available as type 1.0 (feather keyway and setscrew), 3.0 (spline toothing) and 3.1 (spline/clamping hub N).
Features
• Highly flexible intermediate shaft coupling for mounting on I. C. engines and electric motors
• Versatile application in mechanical and plant engineering
• Damping torsional vibrations
• Maintenance-free subject to material combination elastomer/steel
• Available in various kinds of Shore hardness SN and MN
• Elastomer materials NR and on request EPDM
• Compensating for high misalignment on driving and driven end
• Available as axial plug-in and screw-in versions
• Bridging large shaft distances
• Customised lengths available
• Max. circumferential speed vmax=56 m/s
Additional Information
The key component of the series is a vulcanised, circularly closed elastomer element made of natural rubber (WN, SN, MN, up to 90 °C) or for higher temperatures made of synthetical EPDM material (WE, SE, ME, up to 110 °C).
The different kinds of rubber hardness cover one application and torque range per size.
The designing principle ensures a precise prestress in the elastomer.

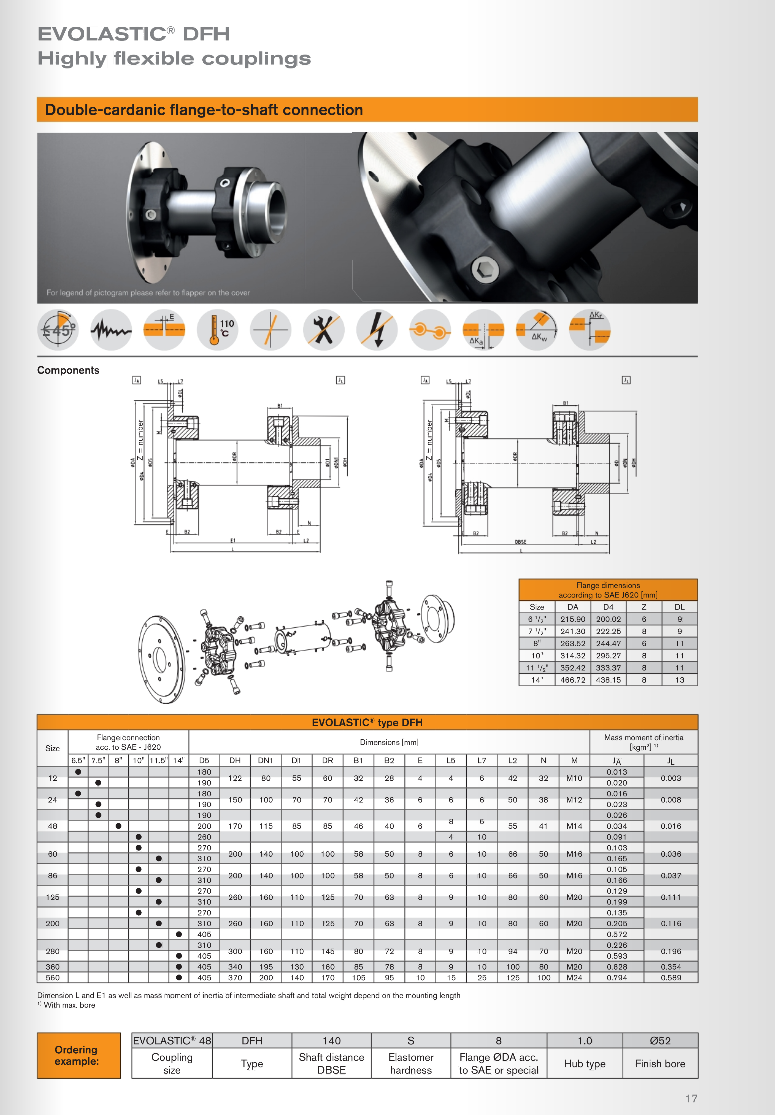

Dimensions
