Product characteristics


• Clamping set for high loads

• Especially suitable for vibratory torques

• Typical applications: flywheels, conveyor drums, cranes

• Slight axial displacement possible during assembly



Description

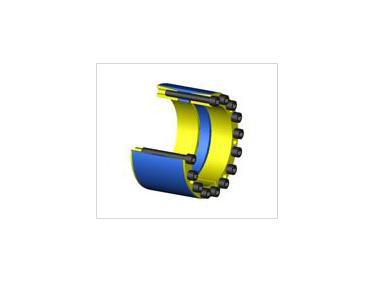

CLAMPEX® clamping elements are shaft-hub-connections allowing for a backlash-free and non-positive connection between cylindric smooth shafts and hubs without keyway. The clamping elements are clamped via integrated screws which are used for non-destructive untightening of the clamping elements in addition (Here series KTR 150 forms the only exception). Depending on the type the clamping elements are either untightened merely by declamping the screws or additionally pulling off the individual elements of the clamping set from each other.

Among others, CLAMPEX® clamping elements are preferred as an alternative to feather key connections.
